Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Connector > M12 Panel Mount Connector-Soldering Wire

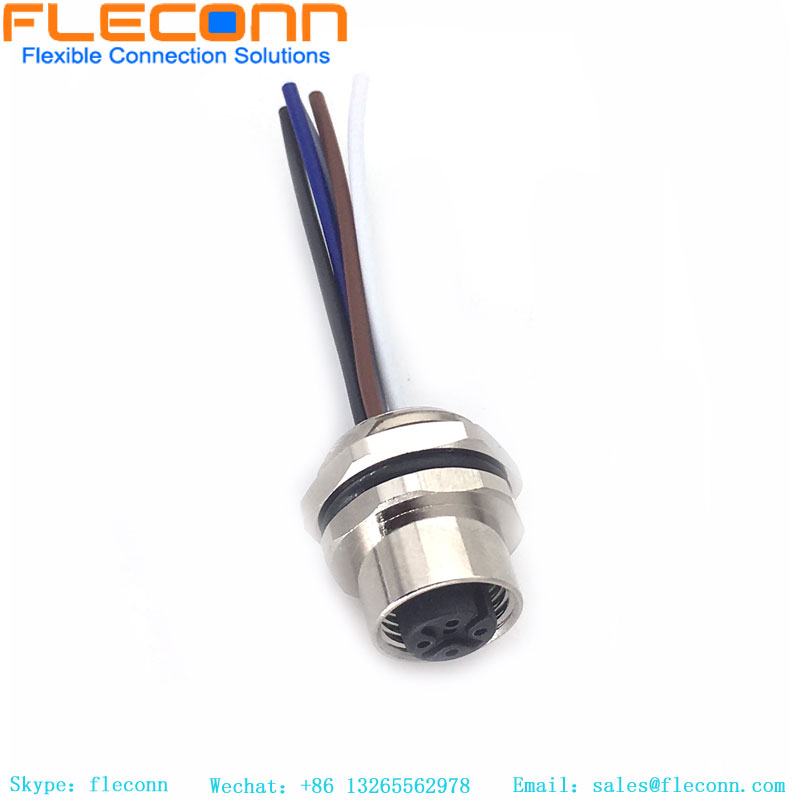

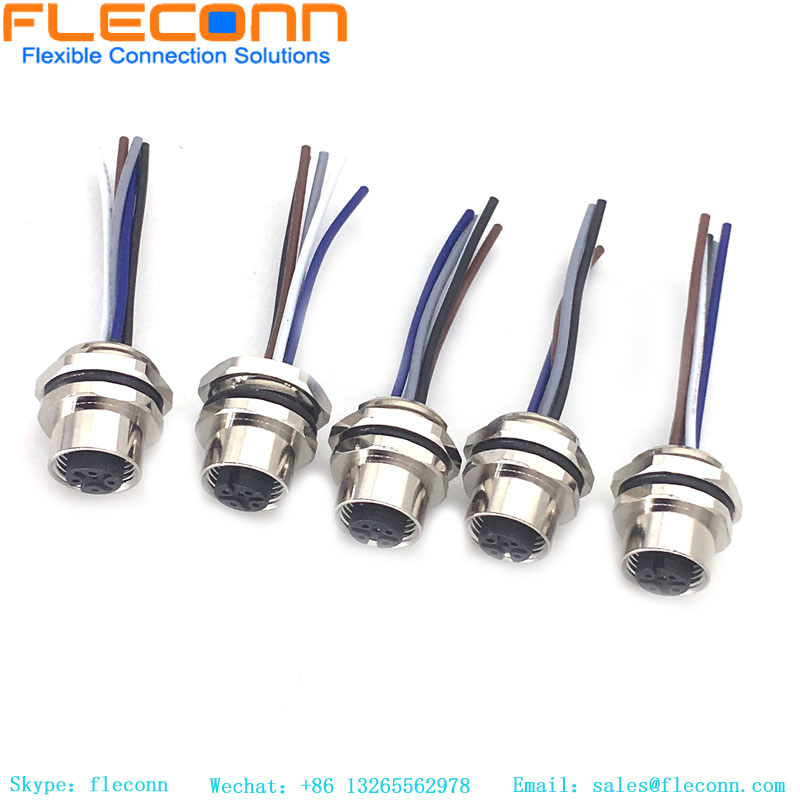

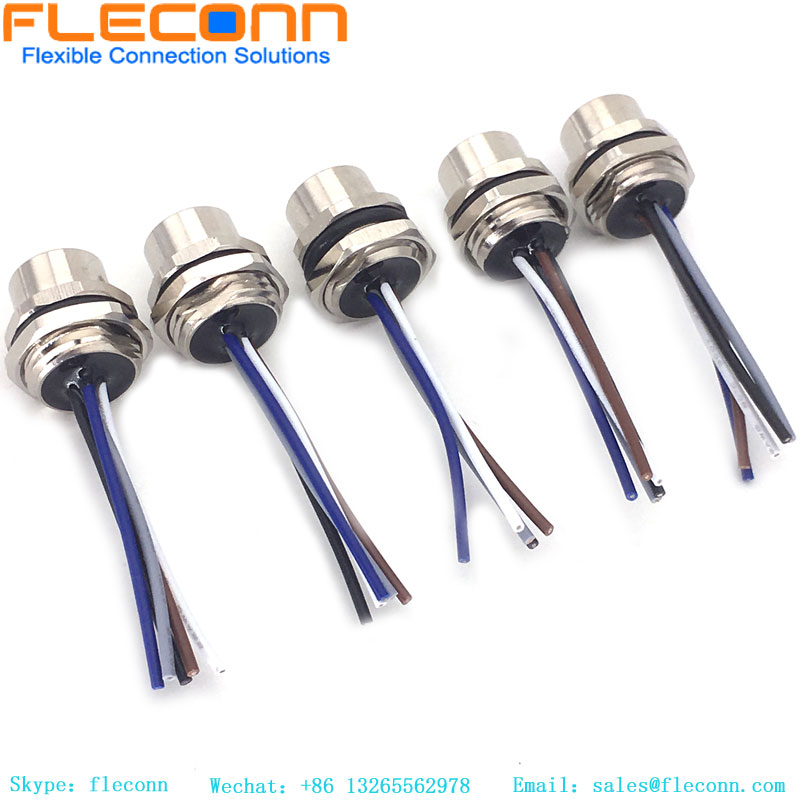

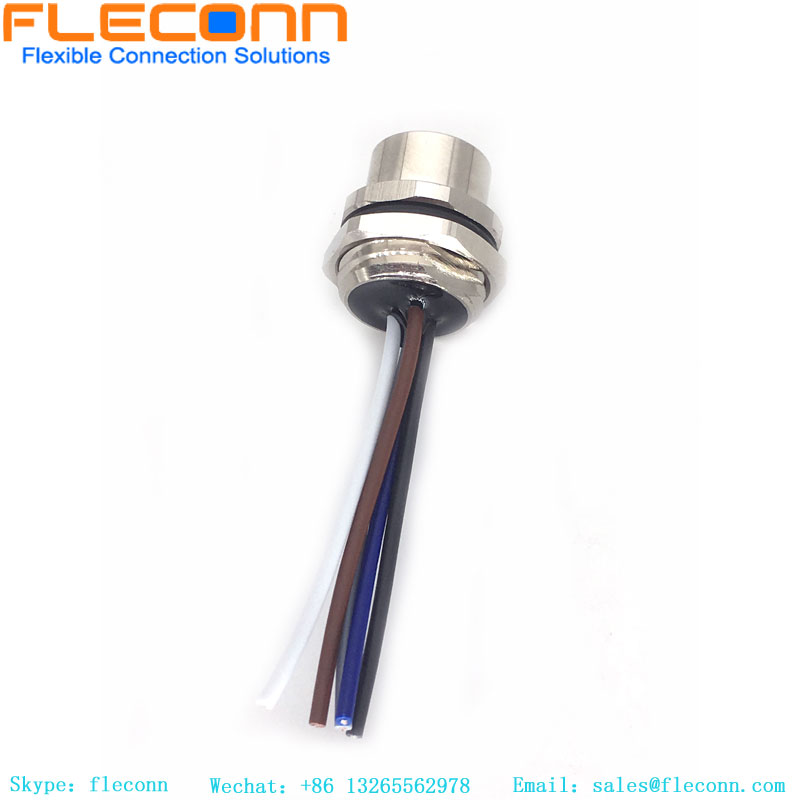

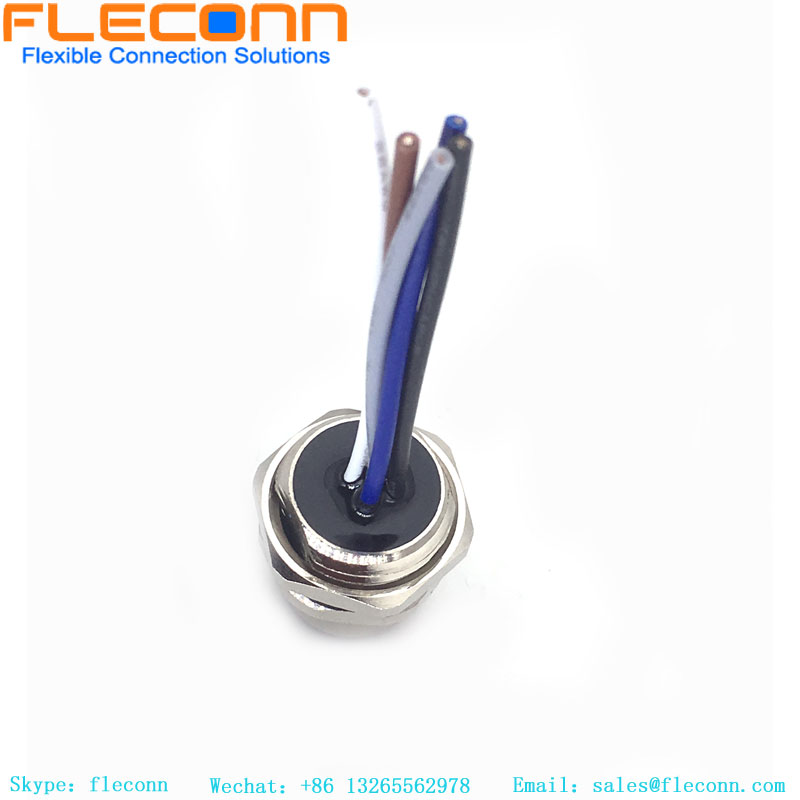

M12 5 Pin A-coded Panel Mount Connector With Cable
M12 5 Pin A-coded Panel Mount Connector With Cable M12 5 Pin A-coded Panel Mount Connector With Cable M12 5 Pin A-coded Panel Mount Connector With Cable M12 5 Pin A-coded Panel Mount Connector With Cable M12 5 Pin A-coded Panel Mount Connector With Cable

M12 5 Pin A-coded Panel Mount Connector With Cable

Item No.: M12-A-F-ST-05P-PM-0.5M
Product series: M12 Panel Mount Connector-Soldering Wire
Wire gauge: 22-28AWG
Adapter wire gauge: 22-28AWG
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 5 Pole Female Panel Mount Connector With Cable Description



M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.


M12 5 Pos Female Front Mount Connector cable product parameters



Product series: M12 Panel Mount Connector Connector Gender: Female
Connector code: X type Connector core number: 5P
Industry standard: IEC61076-2-109 Connector type: Panel type, front lock
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 26AWG Connection method: threaded connection
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 50V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 5 Pin Rear Fastening Connector Wire Harness
M12 5 Pin A-coded Panel Mount Connector With Cable


M12 5 Pin Panel Mount Connector Cable


M12 5 Pin Rear Fastening Connector Wire Harness

M12 5 Pole Female Panel Mount Connector With Cable

M12 5 Pos Female Front Mount Connector cable

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
