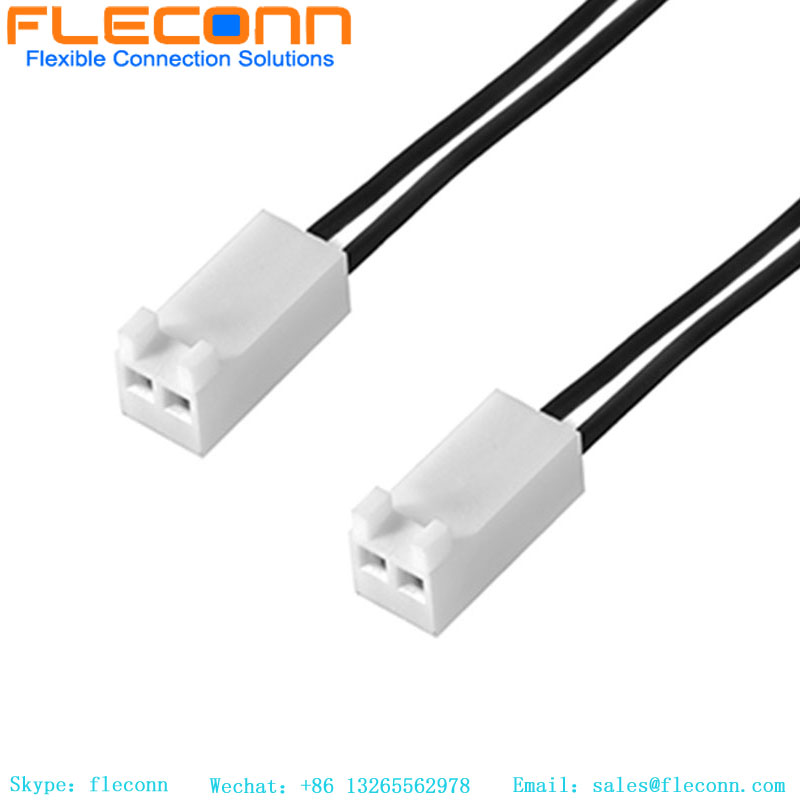

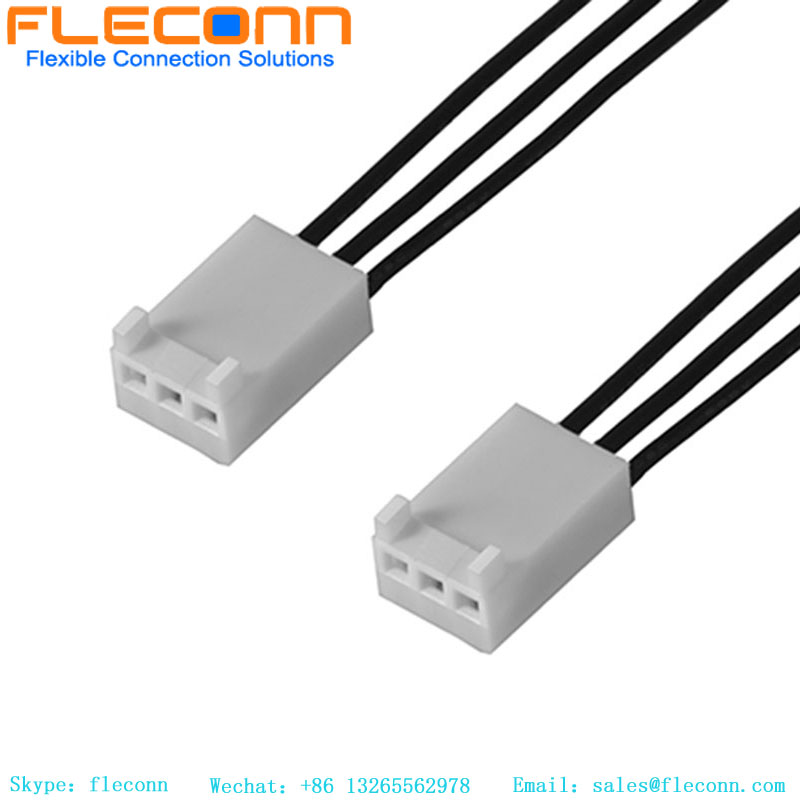

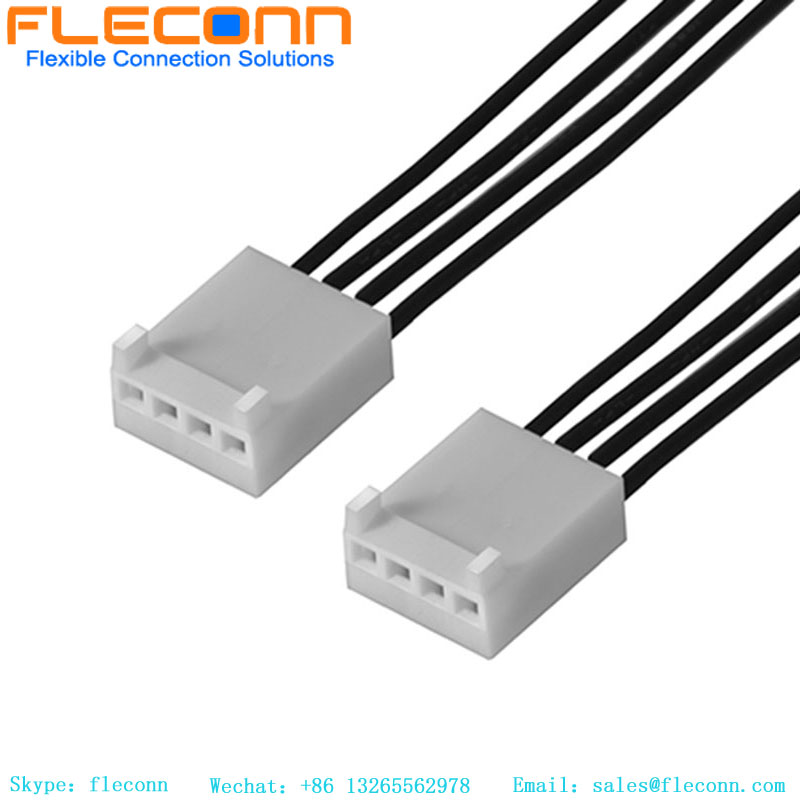

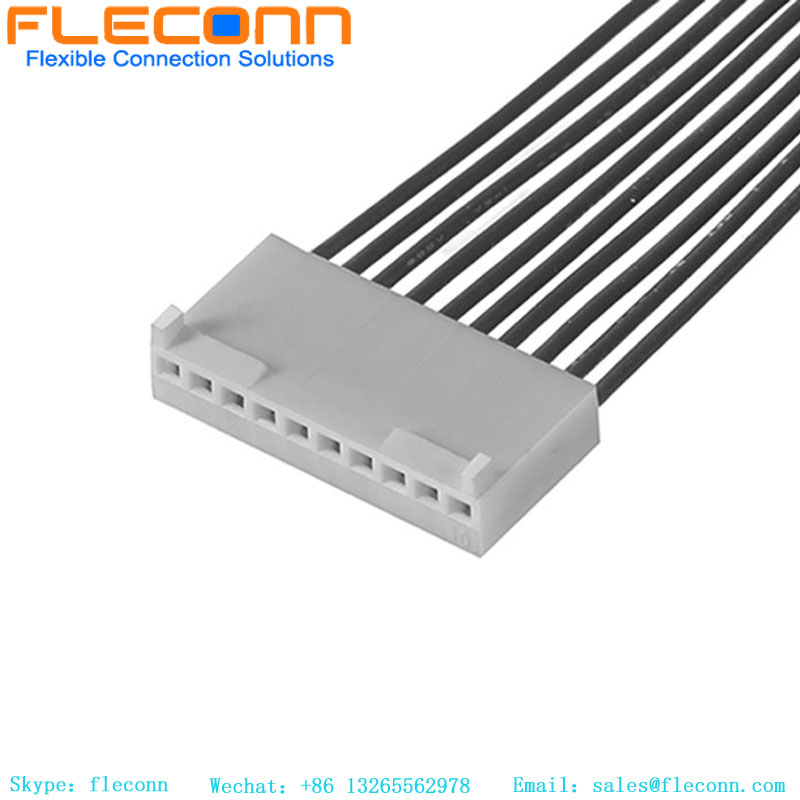

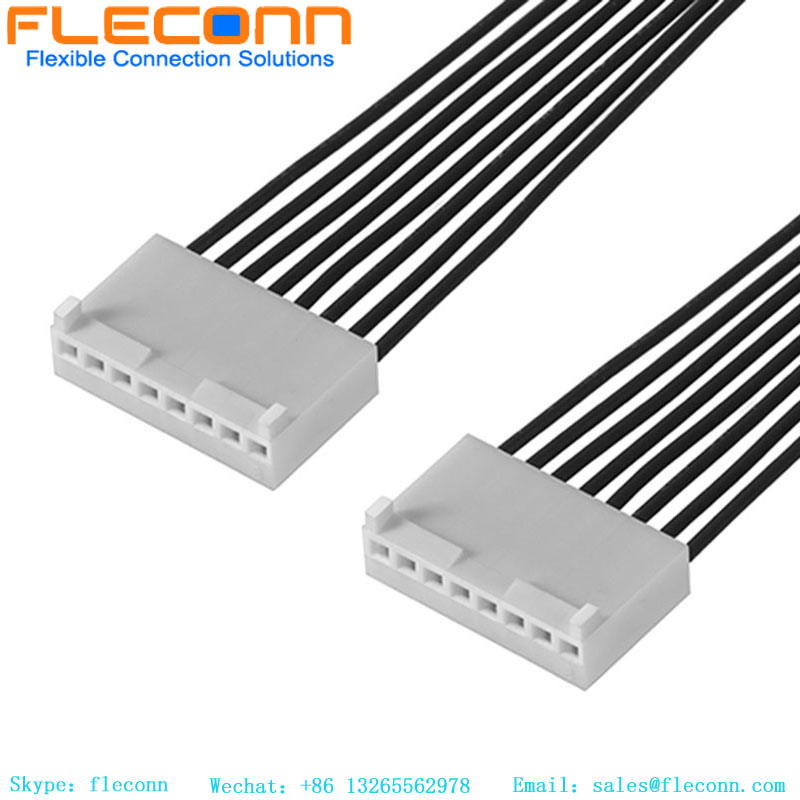

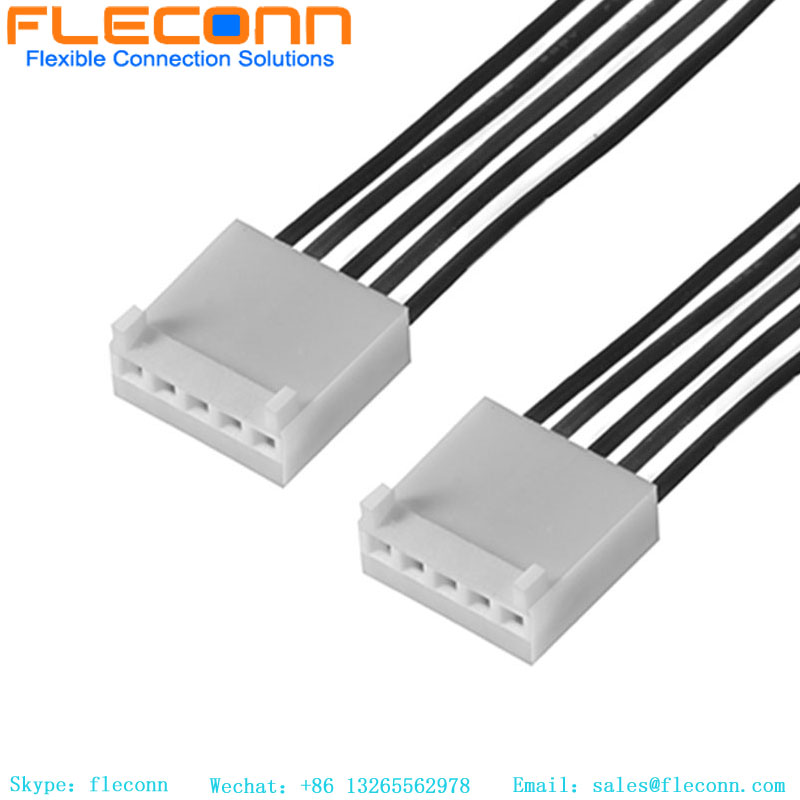

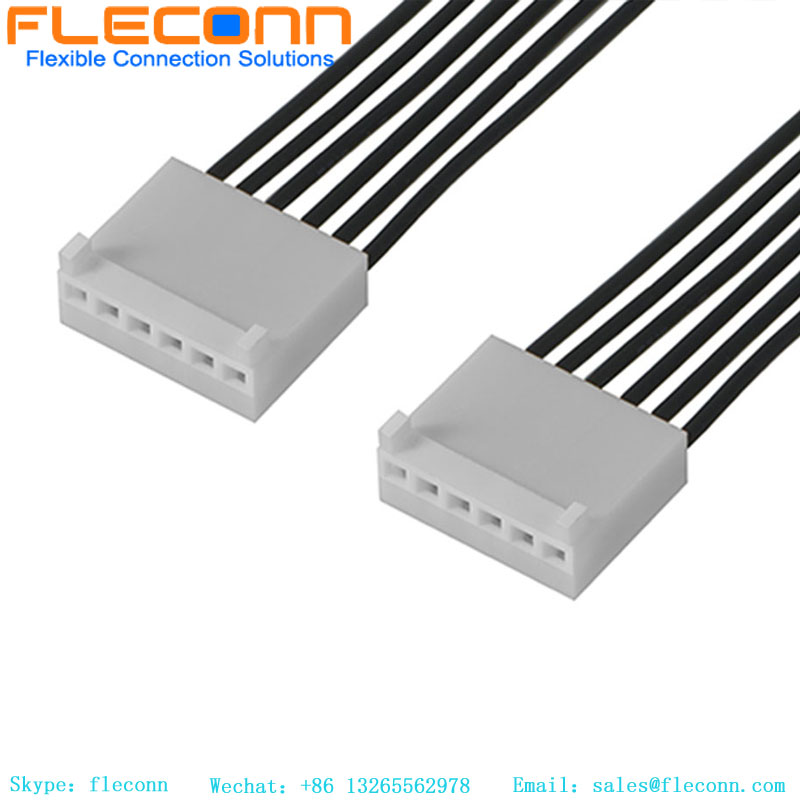

Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable
Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable

Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable

Item No.: MX-22013-06P-2.54PH-PVC-0.5M
Product Name: 2.54mm Pitch Wire Harness
Connector Pitch：2.54MM
Connector : Molex 22013067, 2/3/4/5/6/8/10 pin
Crimp Terminal: 08500113
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Request Quote
Description Review
Description

Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 2.54mm Pitch 22013067 Cable Assembly

Prouduct Name  Custom Molex 22013067 Connector Wire Harness
Equivalent to Molex Part No.  2177961061，2177961062，2177961063，22013067
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 22013067 2.54mm Pitch Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 08500113 2.54mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 22-30 AWG, Reel.
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
























Molex 2.54mm Pitch KK254 Wire To Board 22013067 Connector Cable

molex 2.54mm pitch kk254 wire to board22013067

Molex Original Housing Connector 22013087 Cable Assembly

Molex KK254 Series 10Pin 22013107 Connector Wire Harness

Molex KK 254 Crimp Housing 22013027 Cable Assembly

Molex 22-01-3037 Molex KK254 Series Wire Harness and Connector Assembly

Custom Molex 2.54mm Pitch 2201-3047 Cable Assembly

Molex KK 254 Series 22013057 Crimp Housing KK254 Wire Harness

Molex Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
