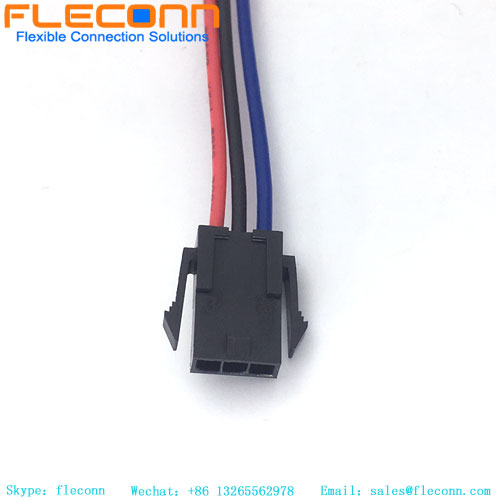

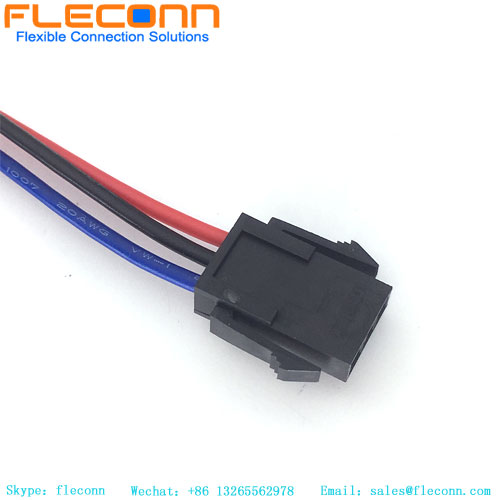

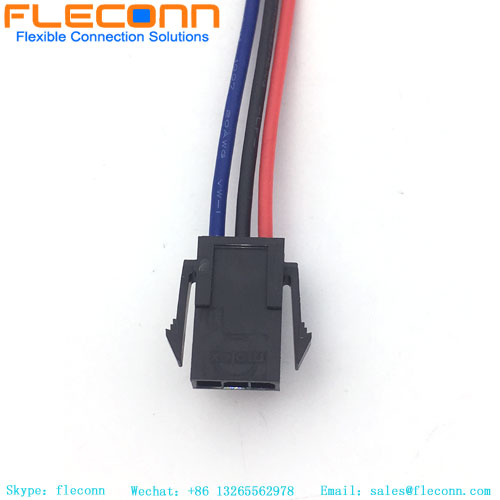

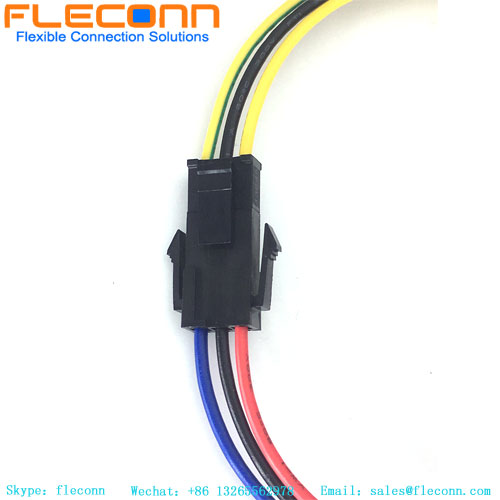

Molex Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly

Item No.: MX-3P-3.0PH-43640-500MM
Product Name: Micro-Fit 3.0 Wire Harness
Connector Pitch:3.0MM
Connector : Molex 43640-0300, 2/3/4/5/6/7/8/9/10/11/12 pin
Crimp Terminal: 43031-0001
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 3.00mm
Description Review
Description

Molex Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly Description



FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 214753 & 43640 series molex microfit 3.0 cable with micro-fit 3.0 connector for power transmision. There are 2 3 4 5 6 7 8 9 10 11 12 pin Molex Micro-Fit 3.0 Cable receptacle housing such as manufacturer part number 43645-0200,43645-0300,43645-0400,43645-0500,43645-0600,43645-0700,43645-0800,43645-0900,43645-1000,43645-1100,43645-1200 available.

Detail description for Molex Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly

Prouduct Name   Molex Micro-Fit 3.0 Male 43640-0300 3Pin Connector Wire Harness
Equivalent to Molex Part No.  2147531031,2147531032,2147531033,2147532031,2147532032,2147532033
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43640-0300 Micro-Fit 3.0 Receptacle Housing, Dual Row, 3 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43031-0001 Micro-Fit 3.0 Crimp Terminal, Male, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag


























Molex Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly

Micro-fit 3.0 Off-the-Shelf (OTS) 2 2147531031,2147531032,2147531033,2147532031,2147532032,2147532033, 3 pin cable wire harness


Molex Micro Fit 3.0 Cable 3 Position Wire Harness


Molex Micro Fit 3.0 Cable 43640-0300 Series Wire Harness


Molex 3.0 Pitch Male 3Pin Cable Assembly


Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made  overmolded cable assemblies available in various circuits and cable lengths.
